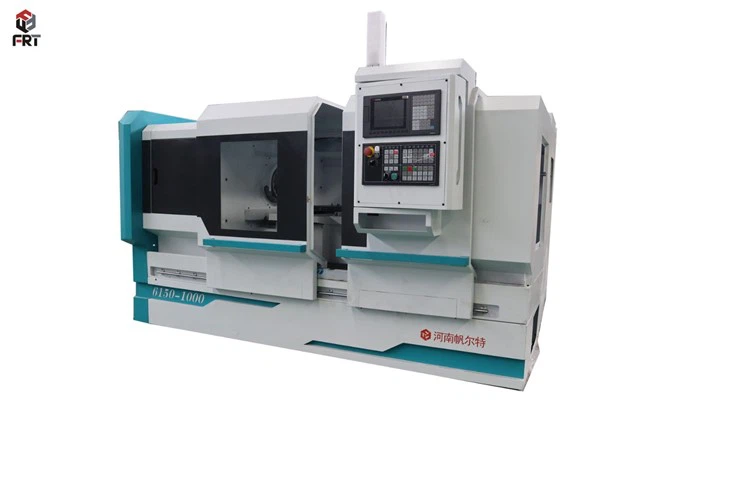

Cnc Kab rov tav tig Center





Lub CNC kab rov tav tig qhov chaw yog ib hom tshuab siv hauv kev tsim khoom los tsim cov khoom cylindrical. Nws ua haujlwm los ntawm kev tig lub workpiece thaum lub cuab yeej txiav tshem tawm cov khoom kom ua tiav cov duab xav tau. Lub "CNC" stands rau Computer Numerical Control, lub ntsiab lus lub tshuab yog tswj los ntawm lub computer program uas dictates lub meej txav ntawm cov cuab yeej txiav. Kab rov tav tig qhov chaw yog qhov txawv los ntawm kev taw qhia ntawm spindle, uas yog mounted horizontally, tso cai rau kev ua haujlwm zoo ntawm cylindrical qhov chaw.









Lub txaj: Lub hauv paus ntawm lub tshuab qhov twg tag nrho lwm yam khoom siv mounted.



Headstock: Tuav lub spindle lub cev muaj zog thiab muab kev sib hloov mus rau lub workpiece.



Chuck: Clamps lub workpiece rau kev sib hloov.



Tool Turret: Tuav ntau yam cuab yeej txiav uas tuaj yeem raug ntsuas rau hauv txoj haujlwm txiav.



X thiab Z Axes: Cov axes tswj kev txav ntawm cov cuab yeej txiav raws qhov ntev (Z-axis) thiab txoj kab uas hla (X-axis) ntawm lub workpiece.



Tswj Vaj Huam Sib Luag: Interface rau programming thiab tswj lub tshuab.



Coolant System: Muab cov dej txias rau lubrication thiab txias thaum lub sijhawm ua haujlwm.



Chip Conveyor: Tshem tawm cov chips thiab cov khib nyiab los ntawm thaj chaw machining.





Tig: Tig lub workpiece thaum lub cuab yeej txiav tshem tawm cov khoom los tsim cov duab cylindrical.



Kev ntsib: Txiav qhov chaw tiaj tus perpendicular mus rau qhov rotational axis ntawm lub workpiece.



Drilling: Ua qhov hauv qhov workpiece siv cov cuab yeej txiav tshwj xeeb.



tho txawv: Txhim kho qhov uas twb muaj lawm lossis tsim cov yam ntxwv sab hauv.



Xov: Txiav threads ntawm cylindrical nto.





Automotive Kev Lag Luam: Kev tsim cov khoom siv cav, cov ncej, lub zog, thiab lwm yam precision.



Aerospace Kev Lag Luam: Ua cov khoom xws li tsaws iav qhov chaw, turbine shafts, thiab cov khoom siv cav.



Kev lag luam kho mob: Ua cov cuab yeej phais, cov khoom siv prosthetic, thiab cov khoom siv kho mob.



General Engineering: Tsim ntau yam khoom siv kho tshuab siv hauv kev lag luam machinery, twj, li qub, thiab lwm yam.



Tool thiab Tuag Ua: Machining tooling Cheebtsam rau kev tsim khoom.



Electronics: Tsim cov khoom siv hluav taws xob xws li cov khoom sib txuas, vaj tse, thiab cov qhov (sockets).





Tsis muaj	Yam khoom	TIAB SA 6163	TIAB SA 6180	TIAB SA 61100	TIAB SA 61125
1	Qhov siab tshaj plaws tig txoj kab uas hla ntawm lub txaj (mm)	630	800	1000	1250
2	Qhov siab tshaj txoj kab uas hla ntawm X-kev taw qhia pallet (mm)	350	500	660	850
3	Qhov siab tshaj plaws workpiece ntev (mm)	1000/1500/2000/3000	1000/1500/2000/3000	1500/2000/3000	1500/2000/3000
4	Length ntawm txaj rail (mm)	550	600	660	755
5	Qhov siab tshaj plaws workpiece load (T)	2T	3T	4T	5t-8T
6	Spindle rotation daim ntawv	Peb-ceev mechanical kis tau tus mob, stepless ceev tswj nyob rau hauv lub iav			Plaub-ceev mechanical kis tau tus mob, stepless ceev tswj nyob rau hauv lub iav
7	Spindle ceev ntau yam (rpm)	25-800	25-800	15-600	5-400
8	Spindle kawg qauv	C11 los yog D11	C11 los yog D11	C11 los yog D11	A2-15
9	Thru-qhov ntawm spindle (mm)	105	105	130	130
10	Taper ntawm lub hauv ntej kawg ntawm lub spindle qhov	Metric 120, 1:20	Metric 120, 1:20	Metric 140, 1:20	Metric 140, 1:20
11	Qhov siab tshaj plaws stroke ntawm cov cuab yeej tuav (mm)	X:530	X:550	X:530	X:560
12	Roller ntsia hlau specifications	X:3205/Z:5010-6310	X3205/5010-6310	X3205/5010-6310	X:5008/Z:8012
13	Kev txav ceev (mm / min)	X:6000/Z:10000	X:6000/Z:10000	X:5000/Z:8000	X:4000/Z:6000
14	Positioning qhov tseeb (mm)	X:0.02/Z:0.03	X:0.02/Z:0.03	X :0.030 Z :0.045	X :0.030 Z :0.045
15	Repositioning raug (mm)	X:0.075/Z:0.01	X:0.075/Z:0.01	X:0.075/Z:0.015	X:0.075/Z:0.015
16	Workpiece machining qhov tseeb	TSI6-IT7	TSI6-IT7	TSI 7	TSI 7
17	Workpiece nto roughness	Rau 1.6	Rau 1.6	Ra 3.2	Ra 3.2
18	Tailstock tes tsho txoj kab uas hla (mm)	100	100	Φ100	160
19	Tailstock tes tsho mus ncig (mm)	250	250	250	300
20	Specification ntawm taper qhov ntawm tail-sleeve tes tsho	MT6 los yog MT5	MT6 los yog MT5	MT 6	Metric 80 hli 1:20
21	Cutter qhov loj (mm)	32*32	32*32	40 * 40mm	45*45
22	Tshuab qhov ntev (mm)	3700*1820*1780	3700*1820*1780	3900*2000*1780	3900*2000*1780
23	Qhov hnyav tag nrho (kg)	4200/4600/4800/5000	Kwv yees li 4500/5000/5500/6500	5600/6400/7500	Kwv yees li 6000/7000/9000
