Dab tsi yog qhov tailstock ntawm CNC tshuab dhos?

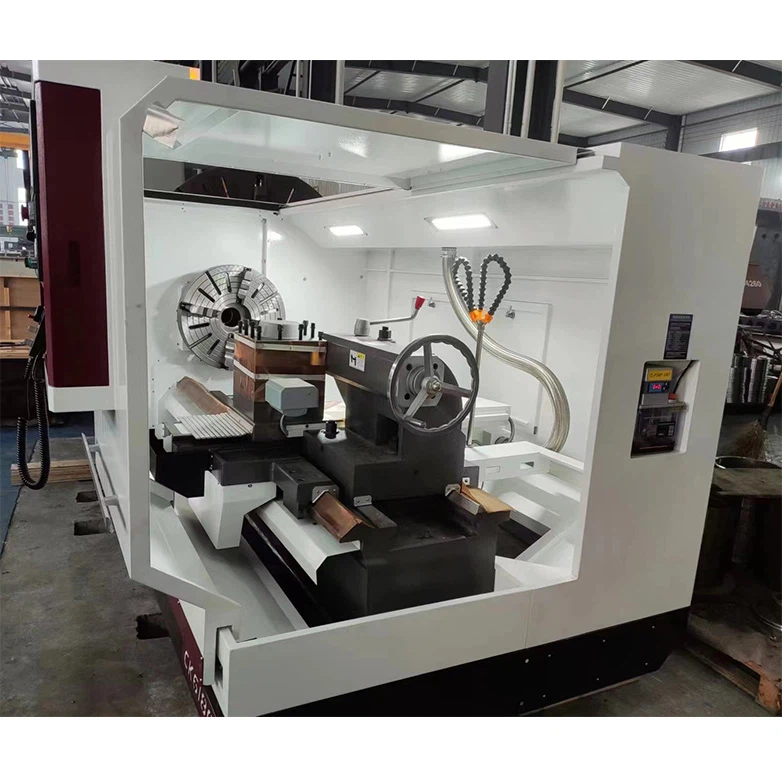

Lub tailstock ntawm CNC tshuab dhos yog lub tshuab cuab yeej cuab tam uas txhawb nqa lub workpiece thaum CNC tshuab dhos ua. Nws feem ntau yog tsim los ntawm lub hauv paus, lub tailstock thav duab, tailstock thav duab, ib tug conical pallet, ib tug tailstock center, thiab lwm yam. Lub luag haujlwm tseem ceeb ntawm tailstock ntawm CNC tshuab dhos yog los xyuas kom meej qhov chaw thiab kev txhawb nqa ntawm lub workpiece thaum lub sij hawm tig.
Hom tailstocks rau cnc tshuab dhos thiab lawv daim ntawv thov
1. Phau ntawv tailstock
Phau ntawv tailstock yog qhov yooj yim tshaj plaws tailstock. Txoj hauj lwm ntawm lub conical pallet yog kho los ntawm kev kho cov tes-cranked ntsia hlau pas nrig ntawm lub tailstock thav duab kom ua tiav lub hom phiaj ntawm kev txhawb nqa thiab muab tso rau hauv lub workpiece. Phau ntawv tailstock muaj cov qauv yooj yim thiab yooj yim rau kev khiav lag luam. Nws yog tsim rau ib qho kev tsim khoom thiab cov khoom me me.
2. Hydraulic tailstock
Lub hydraulic tailstock txhawb nqa thiab tso lub workpiece los ntawm kev tsav tsheb txuas ntxiv thiab thim rov qab ntawm lub pallet los ntawm lub tog raj kheej hydraulic. Lub hydraulic tailstock yog yooj yim rau kev khiav lag luam thiab muaj siab precision, ua rau nws haum rau loj ntau lawm.
3. Hydraulic tailstock
Lub hydraulic tailstock zoo ib yam li hydraulic tailstock, tab sis siv lub tog raj kheej hydraulic los tsav qhov txuas ntxiv thiab thim rov qab ntawm lub pallet. Nws muaj kev txhawb zog siab dua thiab muab qhov tseeb thiab tsim nyog rau kev ua haujlwm siab.
4. Pneumatic tailstock
Lub pneumatic tailstock yog tsav los ntawm lub tog raj kheej pneumatic thiab clamps lub workpiece los ntawm lub siab ntawm cov roj. Nws muaj qhov zoo ntawm kev ua haujlwm ceev ceev, siab precision, thiab tswj tsis siv neeg yooj yim. Nws yog dav siv nyob rau hauv loj ntau lawm thiab automated ntau lawm kab.
5. Los ntawm-qhov tailstock
Lub qhov tailstock tau txais lub qhov nruab nrab ntawm lub qhov, thiab lub workpiece tuaj yeem dhau los ntawm tailstock kom ua tiav ib zaug. Lub qhov tailstock yog tsim rau kev ua haujlwm ntev strip workpieces, yeeb nkab fittings, thiab hollow workpieces.
6. Ob chav cantilever tailstock
Ob chav cantilever tailstock yog ntau lub ntsiab lus txhawb nqa tailstock muaj li ntawm ob txhais caj npab ntev. Nws tuaj yeem txhawb nqa ntev thiab nyias workpieces thiab txhim kho kev ua haujlwm raug thiab qhov zoo ntawm lub workpiece.
